Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: WLG
  • Model Number: X0
  • Phase: Single Phase
  • Protection: Short Circuit
  • Weight: 2KG
  • Output Voltage: 220V
  • Type: Standby
  • Application: Telecommunications
  • Battery type: UPS battery power supply
  • Certificate: CE ROHS
  • Capacity: 300wh
  • Voltage: AC 220V
  • Input: DC 16.8V/2A
  • Output: AC 220V/50Hz/300w
  • Working temperature: -10~60℃
  • charging way: ac charging/solar power charging

Packaging & Delivery

Packaging Details Export carton packing
Delivery Time sample is 7 days, 15--25 working days for bulk order.

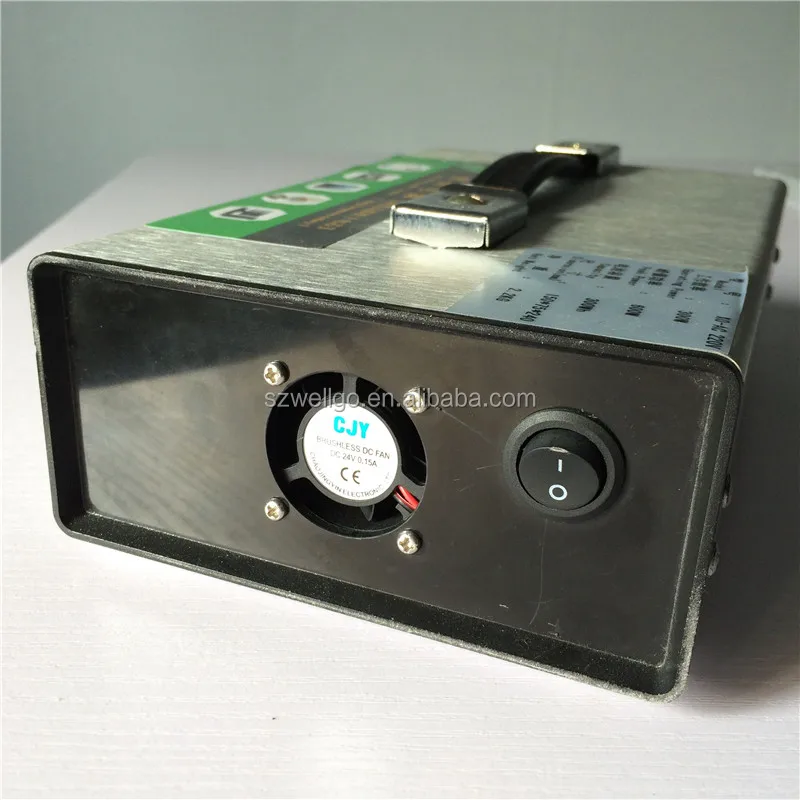

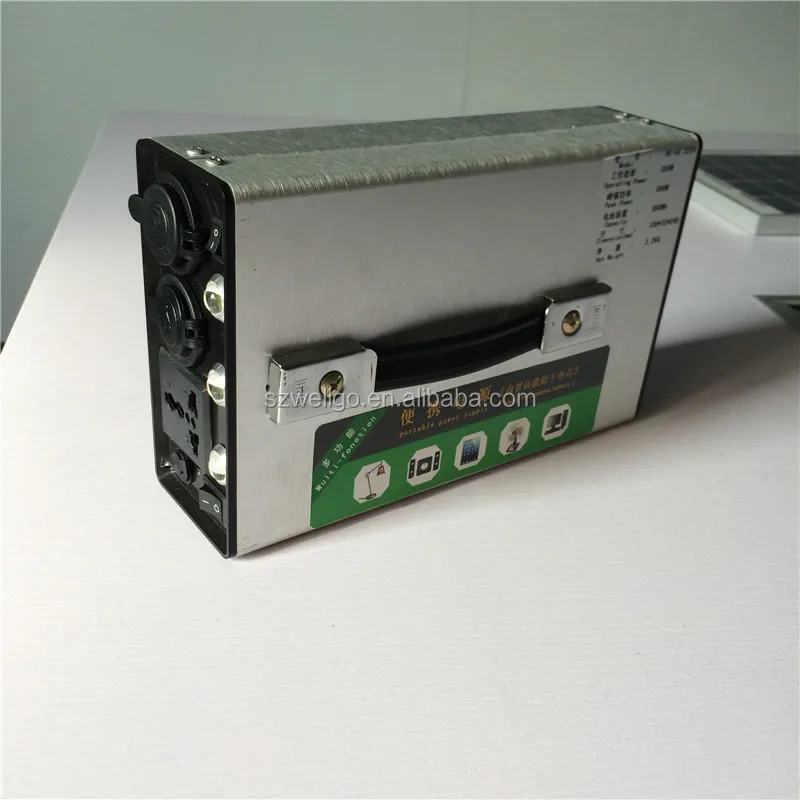

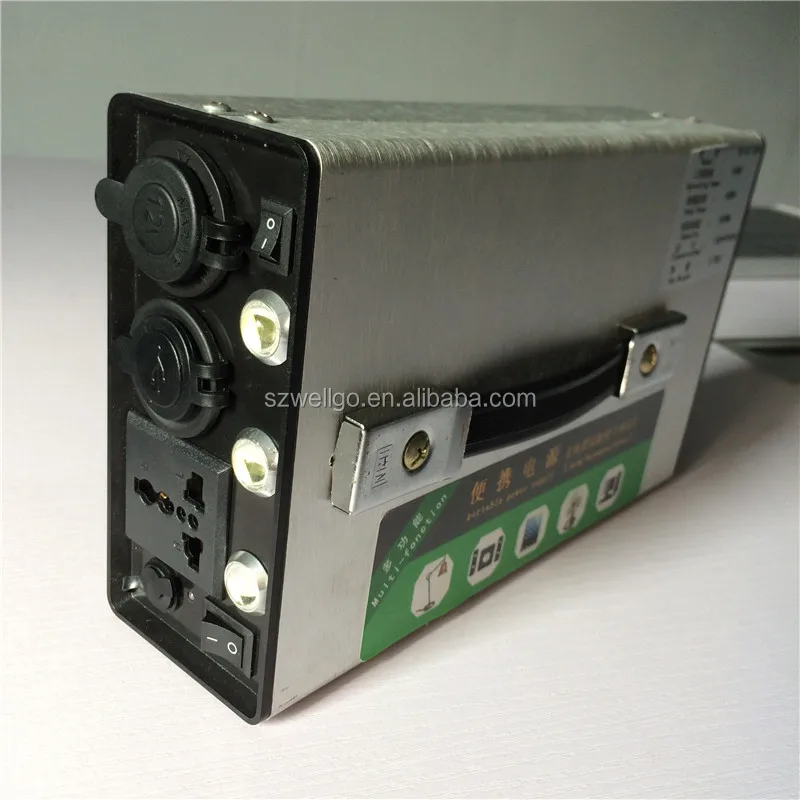

AC220V 110V 300W No break Off-grid Portable UPS Power system Battery Charger Emergency Lighting backup Power station


Product Description



Model number

WLG-X0-300W

Output Waveform:

Pure Sine Wave

AC Input Voltage:

AC 90V-140V 55/60Hz or AC170-260V50/60Hz

Battery Capacity:

Lithium battery 14.4V 23.8Ah   343Wh

Lithium battery inner current wastage

≤50uA

Inner Transformer Empty-load Current

≤0.3A

Inner Transformer Less Voltage Protect

≤10V

Inner Transformer Temperature Protect

≤80°C

Inner Transformer Over-load Protect

300W

Inner Transformer Output

50HZ/110V 50Hz/220V

Inner Transformer Effiency Rate

≥90%

Inner Transformer Effiency

Rated:300W   Peak:600W

Built-in Charger Input Voltage

AC100V -240V 50Hz/60HZ

Built-in Charger Current

10A±0.5A

Built-in Charger Transfer Effiency Rate

≥80%

Built-in Charger Over-discharge Protect

10V±0.5V

Built-in Charger Over-charge Protect

16.8V±0.075V

The Reaction Time:

≤5MS

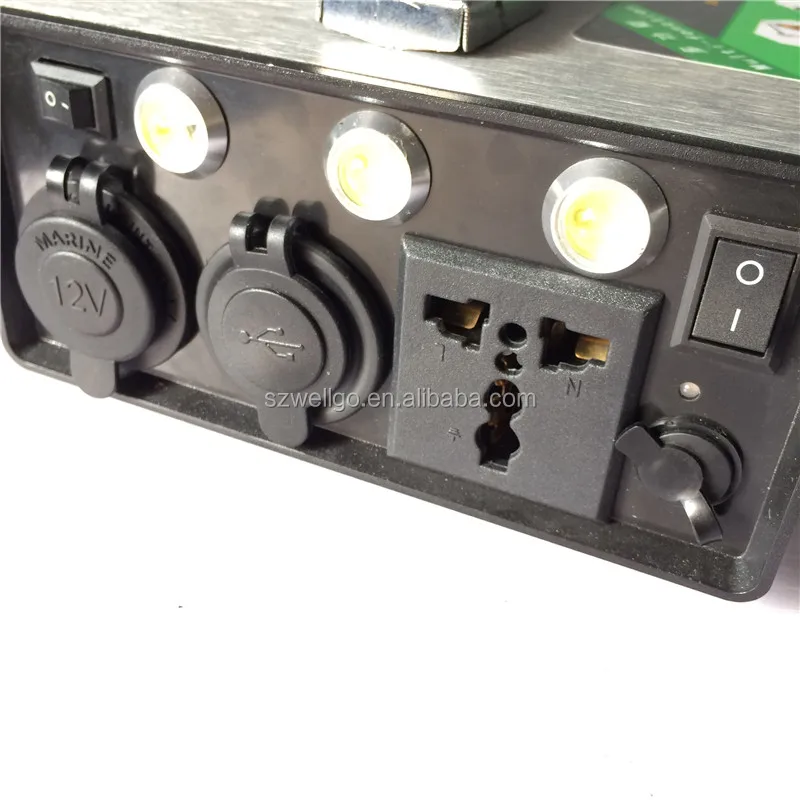

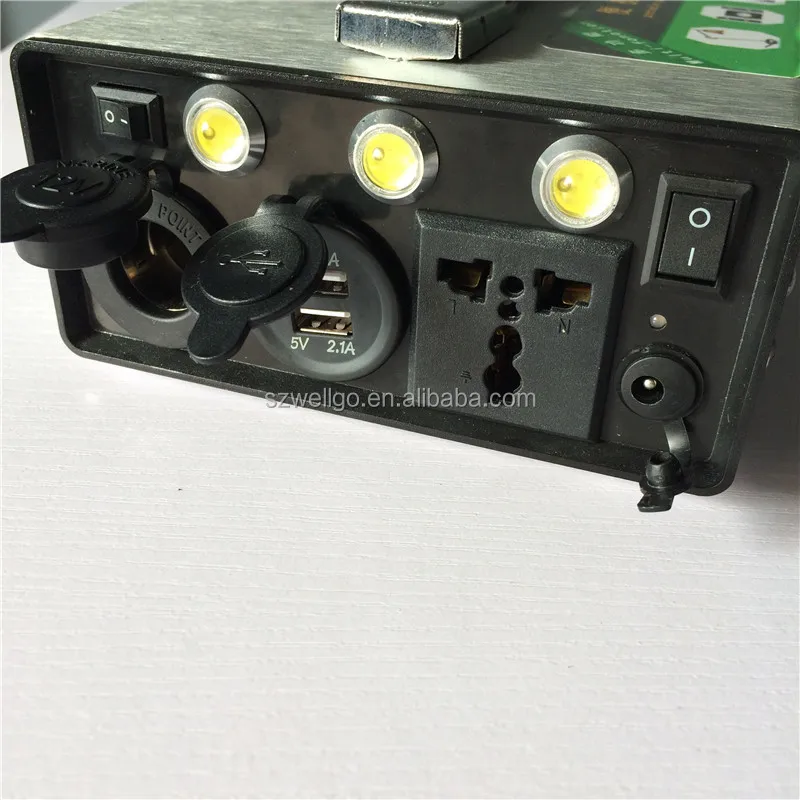

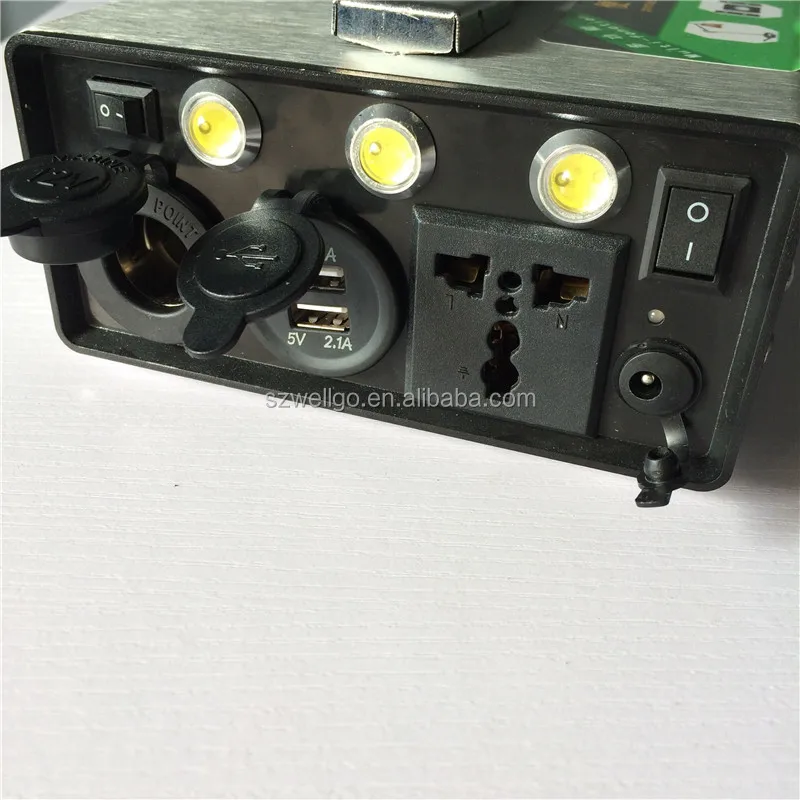

DC Output(1 ports):

12V/10A;

AC Output(1 ports)

AC 220V or AC 110V

USB Output(2 ports):

1pcs 5V/ 1A,1pcs 5V/2.1A, can charge any mobile and for PAD

LED Lighting

12V 6W

LCD indication

frequency, output voltage, battery capacity, working effiency

Overload:

After disconnecting the AC output overload,AC indication red.Disconnect the load,after rebooting recovery

Short circuit protect:

After a short circuit Disconnect the AC output, disconnect the load, after rebooting recovery

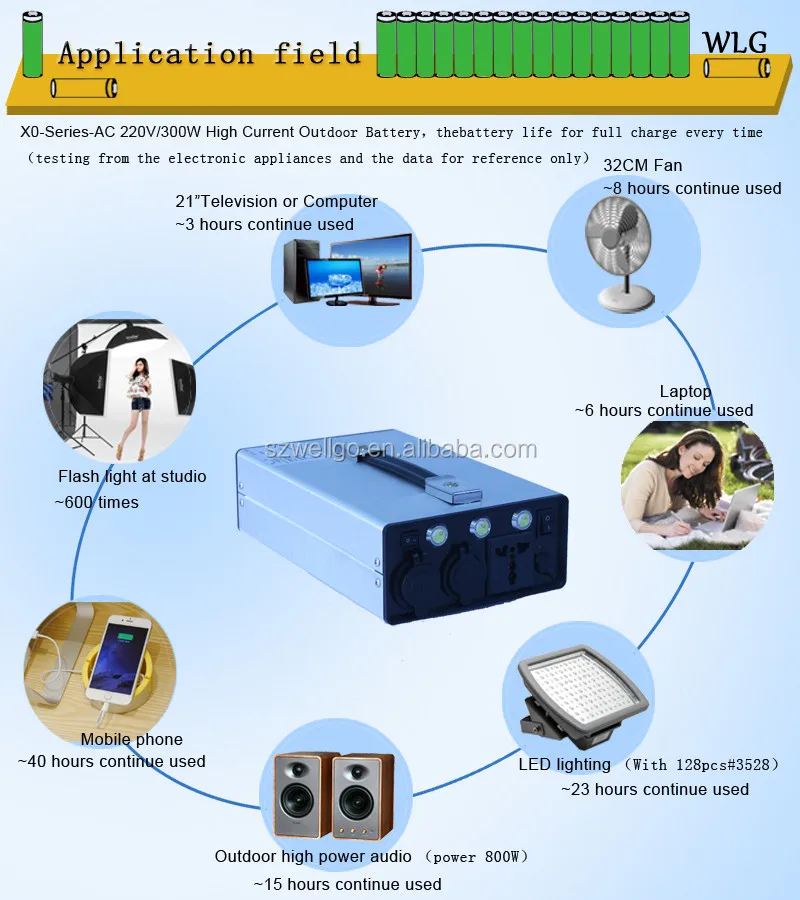

Backup Time:

15 hours(Audio)



600 times(flash light at studio)



40 hours(for 5V mobile charger)



6 hours(Laptop 13")



8 hours(32cm Fan)



23 hours(led lighting with 128pcs #3528)

Color:

Silver

Weight (Nw/Gw):

2kg /3kg

Size:

150x70x240mm
























Packaging & Shipping




Our Services

1. Factory price,no middlemen to earn price difference
2. OEM accepted.Please send us your requirements
3. High Quality: All of products are 100% tested in the process and passed by strict test before shipping.
5. Safe packing & Fast Delivery.
6.Professional pre-sales, after-sales service.


Company Information



Shenzhen Wellgo Tech Co., Ltd. was established in 2013. We concentrate on developing and manufacturing a whole range of battery items.With years of experience in Electric bicycle battery ,Power bank,LED lighting battery and UPS power battery,we have a complete and scientific quality management system and professional technical solution to ensure excellent performance.We have production department, technology department, sales department, product development,we can customize different capacity and voltage of battery pack according to customers' demands.All products pass CE, UL certifications.With reliable quality products and good after-sales service,our products are exported to Europe and the United States, Japan and other countries.Scope of application includes mobile power supply, electric bicycles, electric cars, public transport, military industry, medical equipment, instruments and meters, LED lighting, etc.


FAQ


Q1. How long is the warranty do you have?
A: 1 year.
Q2.Is the battery original?
A:Yes.it is 100% brand new.we never sell fake battery.we have imported battery cell and domestic battery cell,you can choose according to your demands.
Q3.Can i have a sample order?
A:Yes,but the freight cost should be on buyer's account.
Q4.What's the shipping time?
A:3 to 7 days for sample,15-25 days for  bulk order.
Q5.How to customize the model?
A:we can customize different capacity and voltage of battery pack according to customers' demands.If you need print logo,please check the MOQ with us.
